A premium infusion pump developed specifically for use in the home.

Building on the industry-leading CURLIN infusion platform, the CURLIN 8000 is a new multi therapy infusion system designed to meet the unique needs of home infusion and provide a better experience for your team and your patients.

CURLIN 8000 Home Sweet Home graphic

Unlike many infusion pumps that were designed for use in acute care settings, the CURLIN 8000 and CURLIN RxManager were developed in close collaboration with home infusion professionals to complement and simplify existing workflows, making home infusion more reliable, easier, and safer.

Reliable operation

  • Engineered to withstand the rigors of everyday use and handling in a home care environment
  • Built with the highest quality materials and components to maximize service life of the pump
  • Backed by a comprehensive warranty and the best clinical support in the infusion industry

Easy-to-use

  • Intuitive interface for both clinical and non-clinical users
  • Large 3.5” LCD screen with a wide viewing angle for easy viewing of programming or therapy information
  • Contextual on-screen help provides guidance at any point of the programming process or during infusion delivery

Premium performance

  • Proprietary curvilinear design ensures accurate medication delivery
  • Industry-leading resolution and continuity of flow with consistent and steady fluid delivery throughout the infusion
  • Seamless integration with CURLIN RxManager makes programming faster, easier, and customizable to each patient
Take a Tour
Take a Virtual Tour

Take a guided tour of the CURLIN 8000 pump, keypad, and LCD screen, and learn how to insert administration sets and prepare the pump for use.

Overview
Pump Overview

Building on the established CURLIN infusion platform, the CURLIN 8000 is a new multi-therapy infusion system designed to meet the unique needs of home infusion and to provide a better experience for patients.

Overview - Power
PUMP OVERVIEW
Power Port

Connect the pump to an external AC power source using the CURLIN 8000 adapter.

Overview - Bolus
PUMP OVERVIEW
Bolus / Data Port

Connect the remote bolus cord for dosing when using PCA therapy.

Pump - Status Indicator
PUMP OVERVIEW
Status Indicator Lights

Three infusion status indicator lights located to the right of the screen provide visual confirmation of the current infusion status.

Refer to the CURLIN 8000 Instructions for Use for detailed information on the meaning of the different status indicator lights.

Overview - Battery Door Lock
PUMP OVERVIEW
Battery Compartment Door and Lock

Slide the locking mechanism to the right to unlock the battery door. Slide left to lock.

Overview - Battery Type
PUMP OVERVIEW
Battery Types

Use either two "C" cell batteries or a rechargeable lithium ion battery to power the pump.

Overview - Door
PUMP OVERVIEW
Pump Door

Use the latch to open the pump door and insert administration sets.

Overview - Open Door
PUMP OVERVIEW
Open Door

Opening the door fully shows the pumping mechanism and administration set tubing path.

Keypad
Keypad

The CURLIN 8000 keypad includes both pre-defined buttons and "soft keys" that change in function depending on what is displayed on the screen.

Keypad - On/Off
KEYPAD FUNCTIONS
'ON / OFF' Button

Pressing the ON / OFF button powers the pump on or off.

Keypad - Soft Keys
KEYPAD FUNCTIONS
Soft Keys

The three soft keys located at the bottom of the screen correspond to the labels on the screen located directly above each key. The function of these three buttons change depending on what is currently shown on the screen.

Keypad - Up Down
KEYPAD FUNCTIONS
Up & Down Buttons

The up and down buttons are used to scroll through the information shown on the screen.

Keypad - Ok
KEYPAD FUNCTIONS
'OK' Button

Pressing the OK button accepts the data highlighted on the screen or entered on the keypad.

Keypad - Pause
KEYPAD FUNCTIONS
'PAUSE' Button

Pressing the PAUSE button temporarily stops the current infusion.

Keypad - Help
KEYPAD FUNCTIONS
'HELP' Button

Pressing the HELP button opens additional contextual help information on the display screen.

Keypad - Bolus
KEYPAD FUNCTIONS
'BOLUS' Button

For patient use only. When delivering a PCA therapy, pressing the BOLUS button delivers a patient bolus. This button is inactive if a PCA bolus handset is connected to the pump.

Keypad - Numeric
KEYPAD FUNCTIONS
Numeric Keypad

The number and decimal buttons are used to enter numerical values to program the pump. Pressing the CLEAR button deletes or clears values entered in the fields one digit at a time.

LCD Screen
LCD Screen

The large, full color, 3.5” LCD screen has a wide viewing angle that provides easy viewing of programming or therapy information.

Screen - Colors
LCD SCREEN
Colors

Colors are used to quickly indicate status and alarm information on the screen, making it easy to see pump status from across the room.

Green = pump is running, all is good.
Yellow = pump is paused.
Red = high priority alarm, action is required
Blue = infusion has ended
Aqua - pump is priming
Orange = medium priority alarm, action is required

Screen - Home
LCD SCREEN
Home Screen

The home screen provides a quick overview of the infusion status. The home screen for each therapy mode is designed to provide the most relevant information for that therapy.

1) Pump status bar
2) Header / drug / therapy type
3) Activity area
4) Soft key labels
5) Infusion progress meter

Screen - Pause
LCD SCREEN
Pause Screen

Bold yellow colors indicate that pump operation has been paused.

Screen - Complete
LCD SCREEN
Infusion Complete Screen

Bright blue colors indicate that the programmed infusion has been completed.

Screen - Alarm
LCD SCREEN
Alarm Screen

Bright red colors are used to indicate a high priority alarm. Instructions for clearing the alarm are shown on the screen. Pressing the HELP button will provide additional troubleshooting assistance.

Sets
Administration Sets

CURLIN administration sets feature a unique anti-free flow device that prevents over-infusion and allows intentional priming by gravity to reduce set-up time.

Sets - Open
ADMINISTRATION SETS
Open the Door

Pull up on the latch to open the door. Multiple hinge points allow for maximum accessibility to the tubing path area.

Sets - Blue Guide
ADMINISTRATION SETS
Blue Tubing Guide

Insert the blue tubing guide into the right side of the pump in the direction of the blue arrow.

Sets - Yellow Flot
ADMINISTRATION SETS
Yellow Flow-Stop

Insert the yellow flow-stop into the left side of the pump in the direction of the yellow arrow.

Sets - Alignment
ADMINISTRATION SETS
Tubing Alignment

Ensure the tubing lies in the middle of the tubing track and close the pump door securely.

Sets - Done
ADMINISTRATION SETS
Finished!

The administration set should now be properly seated, aligned, and ready for use.

This concludes the brief overview of the CURLIN 8000. If you have additional questions, please contact us.

Looking for more information about the CURLIN 8000 Ambulatory Infusion Pump?

Contact us directly to learn more about how CURLIN 8000 and CURLIN RxManager can make your home infusions easier and safer.

When precision and accuracy matter most.

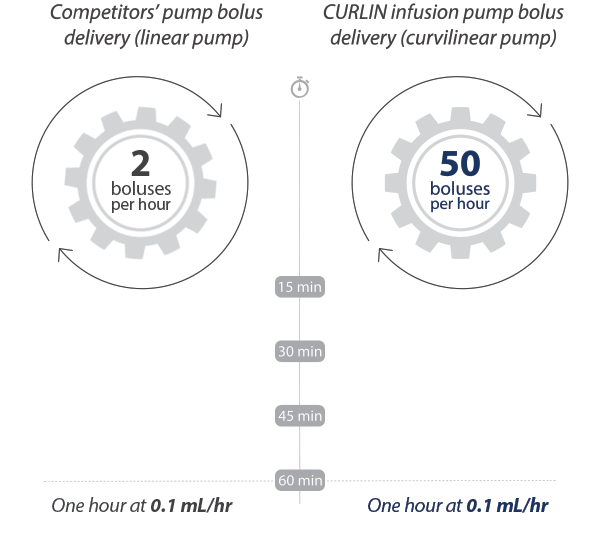

The patented curvilinear peristaltic design of CURLIN pumps deliver fluid in smaller, more accurate increments than standard linear peristaltic infusion pumps (Resolution of Flow) with more precise and steady fluid delivery throughout the entire infusion duration (Continuity of Flow).

Infusion of smaller micro-boluses is often much more therapeutically effective than infusion of larger boluses administered less often, especially when infusing drugs at very low infusion rates (0.1 – 5mL/hr). This is even more important if these drugs have short half-lives. Evenly and closely spaced fluid delivery reduces the spiking and troughing of medication blood serum levels and provides a more constant therapeutic effect.

CURLIN 8000 Continuity and Resolution of Flow

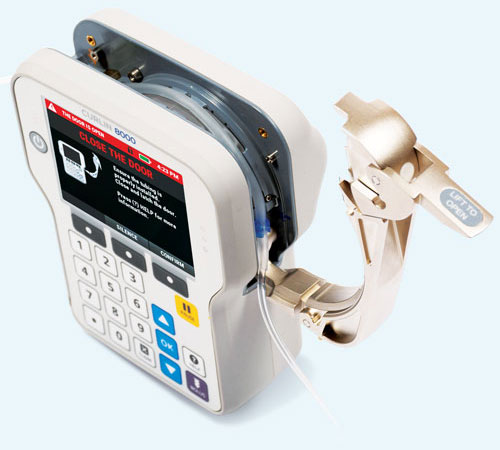

CURLIN 8000 Open

One platform for all your infusion needs.

From delivering antibiotics to nutrition to highly specialized oncology medications, the CURLIN 8000 is able to meet nearly any home infusion delivery requirement through its unique set of features, administration set options, and related accessories.

  • Multi-therapy flexibility: Easily deliver a range of therapy types including continuous, intermittent, variable, TPN, and PCA, all with a single device.
  • Administration set options: A variety of administration sets are available to meet nearly any home infusion requirement. All sets are compliant with the latest industry standards.
  • Range of accessories: battery provides a convenient and cost-effective power solution. A pole holster and lock box are available for stationary use, and a custom designed carrying pack is available for ambulatory use.
  • Customizable security: Three security levels, autolock feature, and lock icon ensure programming capabilities are only accessible by intended users.
CURLIN Rx Manager Logo

A comprehensive medication safety software developed specifically for home infusion.

CURLIN RxManager is an all-new medication safety software that helps you manage your patients’ therapies safely and efficiently. It was developed with extensive input from home infusion pharmacists, seamlessly integrates with the CURLIN 8000 pump, and complements existing home infusion workflows for both pharmacists and nurses.

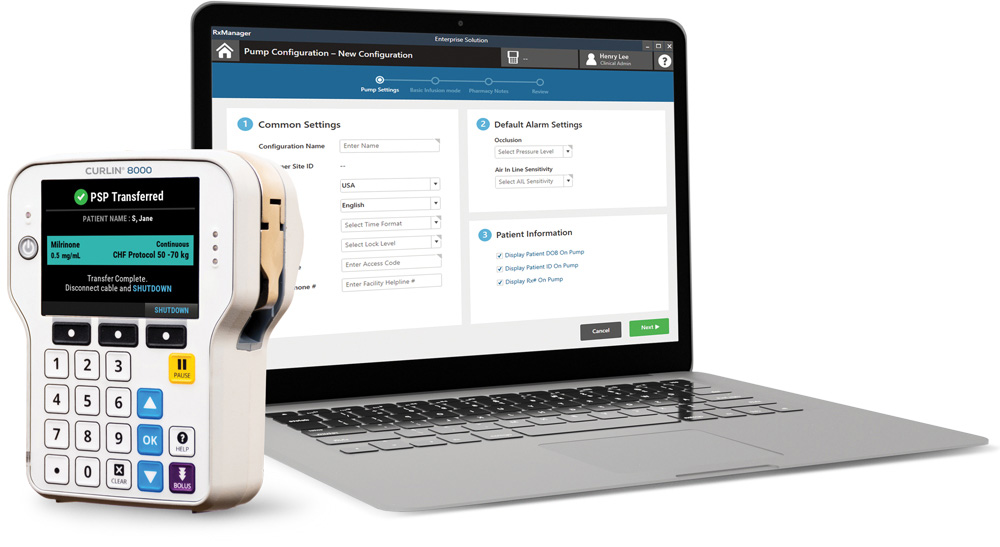

CURLIN 8000 with Rx Manager Software

Additional resources and information

Infusion Delivery Sets

Administration Sets

All  administration sets are non-DEHP PVC, are not manufactured with rubber latex, and feature integral free-flow protection. Learn more »

Infusion Accessories

Accessories

A full line of accessories are available for both hospital and home use.
View all accessories »

Infusion Resource Center

Resource Center

View training videos, download pdf manuals & guides, see FAQs, and much more.
Learn more »

Infusion Resource Center

For Patients

Access videos and resources specifically created for infusion patients.
Visit the Patient Center »

CURLIN 8000 technical specifications

Mechanism: Curvilinear peristaltic pump action
Therapies Modes: Continuous, PCA, TPN, Intermittent, Variable
Size: 5.5 in x 4.3 in x 2.75 in (13.63 cm x 10.99 cm x 5.93 cm)
Weight: 23.8 oz (674 gm) with rechargeable battery
24.4 oz (691 gm) with 2 C Cell batteries
Screen size: 3.5 in (8.9 cm) x 2.0” (5.1 cm), 320 x 240 pixels
Flow rate accuracy: 1 – 500 mL/hr, +/-5%, 0.1 – 0.9 mL/hr, +/- 15%
Flow Rates:
  • CONT, INT & VAR: 0.1 – 500 mL/hr
  • TPN: 10- 500 mL/hr
Flow Rates (PCA):
  • Basic Program:
    • Basal Rate: 0 or 0.1- 10 mL/hr
  • PSP Program: IV: 0 or 0.1 – 100 mL/hr
    • SubQ: 0 or 0.1 – 10 mL/hr
    • EPI: 0 or 0.1 – 35 mL/hr
Volume Limits: 1.0 – 9,999 mL
0.1 mL – 99.9 mL in increments of 0.1 mL
100 mL to 9,999 mL in increments of 1 mL
KVO Rates: 0.1 – 9.9 mL/hr (not available in PCA mode)
Units: mL, mg, mcg
Max # of Boluses: 30/hr
Patient Bolus:

0 when no patient bolus is programmed
AIL: 0.1 mL, 0.5 mL, 1 mL, 2 mL or OFF

Basic Programs:

  • 0.1 mL – 10 mL for all routes (mg and mcg equivalent within that range)

PSP Programs:

  • 0.1 mL – 50 mL IV (mg and mcg equivalent)
  • 0.1 mL – 25 mL EPI (mg and mcg equivalent)
  • 0.1 mL – 10 mL SQ (mg and mcg equivalent)
Bolus Lockout: 2 minutes to 24 hours increments of 1 minute
Power Sources:
  • Rechargeable Lithium-Ion battery
  • 2 “C” alkaline batteries
  • AC adapter (120 to 240Vac 50 Hz)
Operating time (fully charged batteries)

Rechargeable Battery:

  • 500 mL/hr – 10 hrs
  • 125 mL/hr – 30 hrs
  • 2 mL/hr – 85 hrs

C Cell Battery:

  • 500 mL/hr – 10 hrs
  • 125 mL/hr – 30 hrs
  • 2 mL/hr – 50 hrs
Alarms Downstream occlusion, Upstream occlusion, Air in Line, Door Open, Set not installed, Empty Battery, Infusion Ended, Stuck Key, Faulty AC Adapter, Setup Required, Service Required, Maintenance Required, Failed to Change Backup Battery, Check Tubing, Unusable BatteryAlarm
Alarm volumes 1 – 10 with 10 being the loudest
Data log Infusion Totals, Patient History, Pump History, Hourly Totals, Pump Reports
Additional features Real-time line pressure, Infusion Status Indicator Lights, Soft Keys, Help Button, Bolus Button, Pause Button, Infusion Progression Meter
Security Three lock levels, lock box, customizable access code
Software Enterprise Solution Software (Admin Manager, RxManager, Service Manager)
Administration sets DEHP-free set configurations, integrated IV bag sets, 0.2 and 1.2 micron filtered sets
Accessories Pole Clamp Holster, AC Adapter, Li-Ion Battery, Bolus Cable, Data Cable, Lithium Ion Battery Charger, Lockbox
