CURLIN Infusion Administration Sets
All CURLIN infusion administration sets are non-DEHP PVC, are not manufactured with rubber latex, and feature integral free-flow protection. All administration sets below can be used with any CURLIN infusion pump. All administration sets are packaged 20 per box. NOTE: Measurements shown in the administration set descriptions below indicate the total length of the set in meters (and inches), and fill volume in milliliters.
Use the options below to find administration sets and features compatible with your pump.
Select your Infusion pump
Administration set features
380-4195 CURLIN Infusion Administration Set
Order No: 380-4195
Epidural Yellow-Striped tubing, Non-Vented Bag Spike, Vented 0.2 Micron Filter (air eliminating, low-protein binding), Anti- Siphon Valve (ASV), Slide Clamp, NRFit Connector
Length: 2.4 m (94”) / Volume: 4.4 mL (23°C) or 4.5 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps
380-4194 CURLIN Infusion Administration Set
Order No: 380-4194
Epidural Yellow-Striped tubing, Vented Vial Spike, Vented 0.2 Micron Filter (air eliminating, low-protein binding), Slide clamp, NRFit Connector
Length: 2.4 m (94”) / Volume: 4.0 mL (23°C) or 4.1 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps
380-4192 CURLIN Infusion Administration Set
Order No: 380-4192
Epidural Yellow Striped tubing, Non-Vented Bag Spike, Vented 0.2 Micron Filter (air eliminating, low-protein binding), Slide Clamp, NRFit Connector
Length: 3.0 m (118”) / Volume: 4.8 mL (23°C) or 4.9 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps

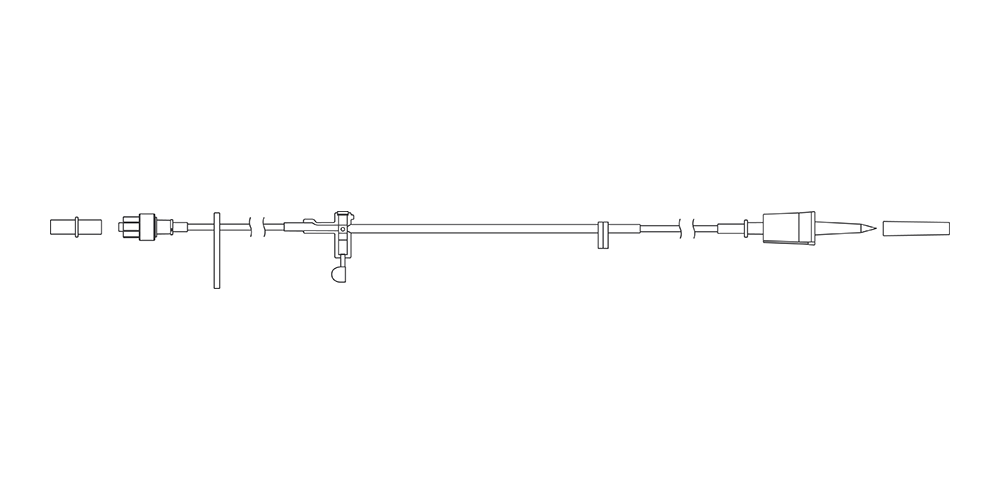

380-4178 CURLIN Infusion Administration Set
Order No: 380-4178
Vented Vial Spike, Slide Clamp, Anti-Siphon Valve (ASV), Luer
Length: 2.1 m (83”) / Volume: 3.6 mL (23°C) or 3.7 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps

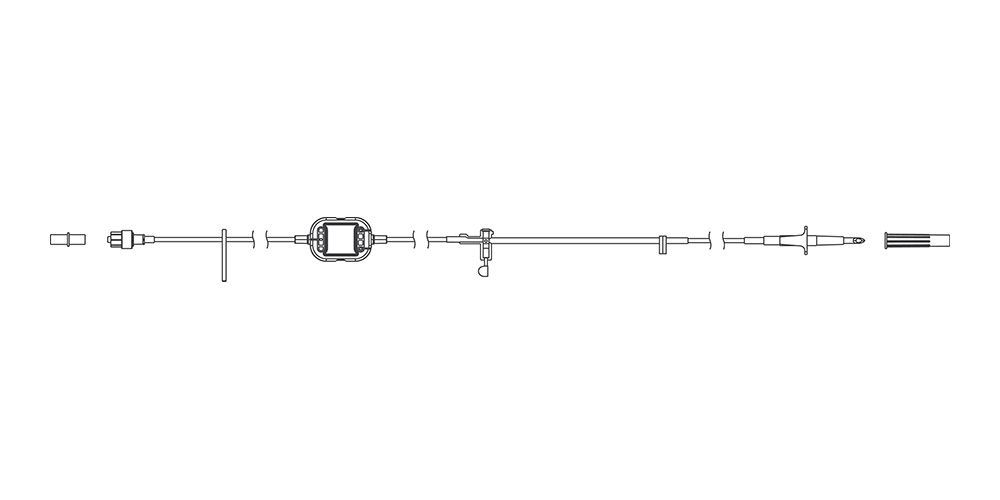

380-4174 CURLIN Infusion Administration Set
Order No: 380-4174
Non-Vented Bag Spike, Vented 0.2 Micron Filter (air eliminating, low-protein binding), Slide Clamp, Anti-Siphon Valve (ASV), Luer
Length: 2.5 m (99”) / Volume: 6.6 mL (23°C) or 6.7 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps
380-4173 CURLIN Infusion Administration Set
Order No: 380-4173
Non-Vented Bag Spike, Vented 1.2 Micron Filter (air eliminating, low-protein binding), Slide Clamp, Anti-Siphon Valve (ASV), Luer
Length: 2.5 m (99”) / Volume: 6.6 mL (23°C) or 6.7 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps

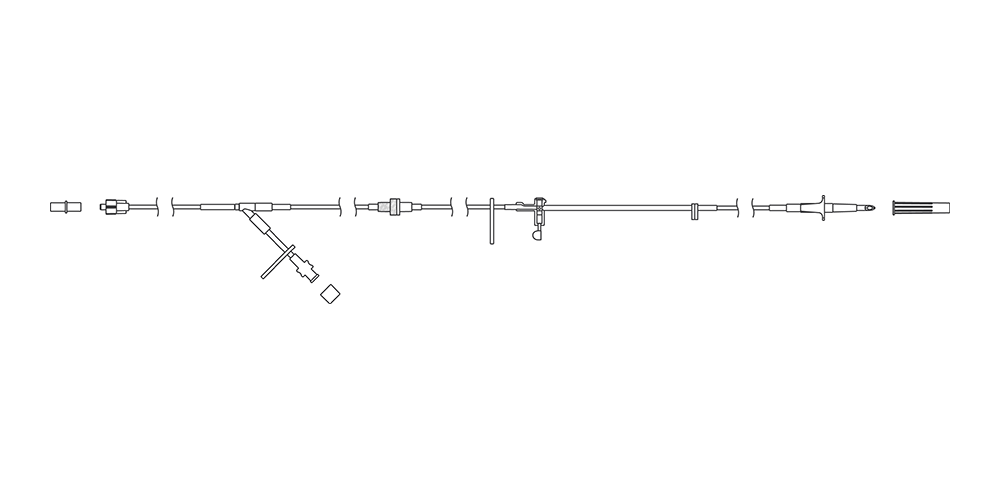

380-4168 CURLIN Infusion Administration Set
Order No: 380-4168
Non-Vented Bag Spike, Slide Clamp, Anti-Siphon Valve (ASV), Y-Site (with female Luer), Slide Clamp, Check Valve, Luer
Length: 2.6 m (102”) / Volume: 4.2 mL (23°C) or 4.3 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps
380-4166 CURLIN Infusion Administration Set
Order No: 380-4166
Non-Vented Bag Spike, Slide Clamp, Anti-Siphon Valve (ASV), Luer
Length: 2.2 m (87”) / Volume: 3.8 mL (23°C) or 3.9 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps
380-4165 CURLIN Infusion Administration Set
Order No: 380-4165
Epidural Yellow-Striped tubing, Non-Vented Bag Spike, Vented 0.2 Micron Filter (air eliminating, low-protein binding), Slide Clamp, Anti-Siphon Valve (ASV), Luer
Length: 2.4 m (94”) / Volume: 4.0 mL (23°C) or 4.1 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps

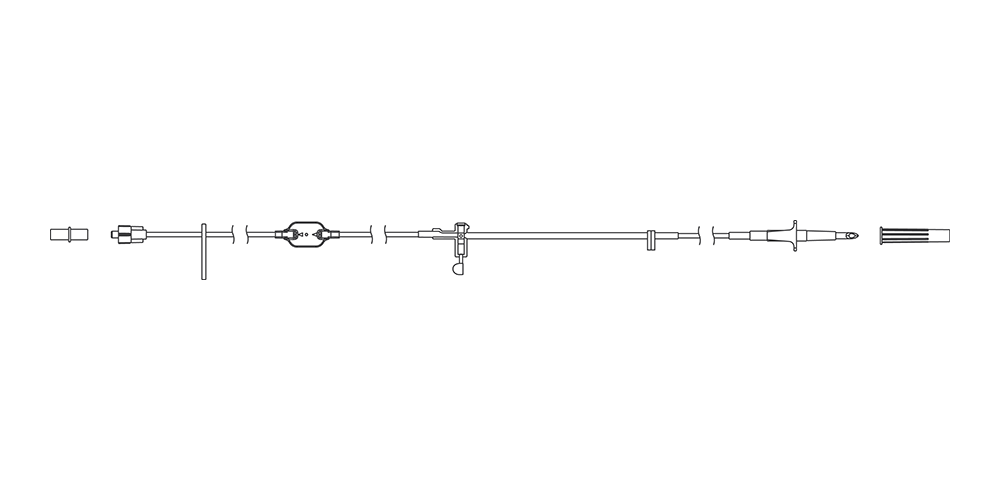

380-4162 CURLIN Infusion Administration Set
Order No: 380-4162
Epidural Yellow Striped tubing, Non-Vented Bag Spike and Vented 0.2 Micron Filter (air eliminating, low protein binding), Slide Clamp, Luer
Length: 3.0 m (118”) / Volume: 4.8 mL (23°C) or 4.9 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps
380-4144 CURLIN Infusion Administration Set
Order No: 380-4144
Epidural Yellow-Striped tubing, Vented Vial Spike, Vented 0.2 Micron Filter (air eliminating, low protein binding), Slide clamp, Luer
Length: 2.4 m (94”) / Volume: 4.0 mL (23°C) or 4.1 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps
380-4134 CURLIN Infusion Administration Set
Order No: 380-4134
Non-Vented Bag Spike, Slide Clamp, Y-Site (with female Luer), Slide Clamp, Check Valve, Luer
Length: 2.6 m (101”) / Volume: 3.8 mL (23°C) or 3.9 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps

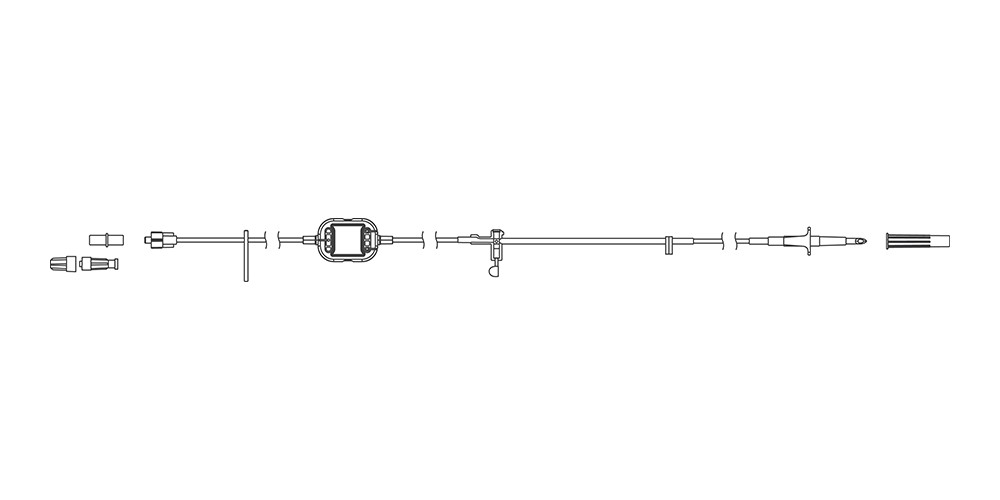

380-4130V CURLIN Infusion Administration Set
Order No: 380-4130V
Non-Vented Bag Spike, Vented 0.2 Micron Filter (air eliminating, low-protein binding), Slide Clamp, Luer, Add-on check valve
Length: 2.5 m (99”) / Volume: 6.2 mL (23°C) or 6.3 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps
380-4130 CURLIN Infusion Administration Set
Order No: 380-4130
Non-Vented Bag Spike, Vented 0.2 Micron Filter (air eliminating, low-protein binding), Slide Clamp, Luer
Length: 2.5 m (99”) / Volume: 6.2 mL (23°C) or 6.3 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps
380-4128V CURLIN Infusion Administration Set
Order No: 380-4128V
Non-Vented Bag Spike, Vented 1.2 Micron Filter (air eliminating, low-protein binding), Slide Clamp, Luer, Add-on check valve
Length: 2.5 m (99”) / Volume: 6.2 mL (23°C) or 6.3 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps

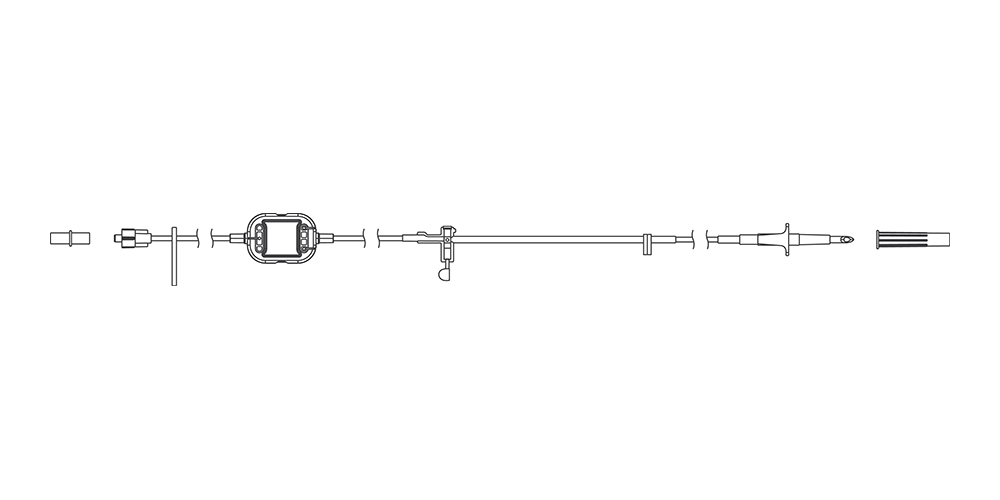

380-4128 CURLIN Infusion Administration Set
Order No: 380-4128
Non-Vented Bag Spike, Vented 1.2 Micron Filter (air eliminating, low-protein binding), Slide Clamp, Luer
Length: 2.5 m (99”) / Volume: 6.2 mL (23°C) or 6.3 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps
380-4114 CURLIN Infusion Administration Set
Order No: 380-4114
Non-Vented Bag Spike, Slide Clamp, Luer
Length: 2.4 m (93”) / Volume: 3.6 mL (23°C) or 3.7 mL (23°C / 18 psi)
For use with the CURLIN 8000, 6000, and PainSmart Infusion Pumps
340-4174 CURLIN Infusion Administration Set
Order No: 340-4174
Administration set with non-vented bag spike, 0.2 micron air-eliminating filter, slide clamp, anti-siphon valve, and male luer with vented cap. 2.4 m (94”) / 5.1 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4173 CURLIN Infusion Administration Set
Order No: 340-4173
Administration set with non-vented bag spike, 1.2 micron air-eliminating filter, slide clamp, anti-siphon valve, and male luer with vented cap. 2.4 m (94”) / 5.1 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4168 CURLIN Infusion Administration Set
Order No: 340-4168
Administration set with non-vented bag spike, slide clamp, anti-siphon valve, y-site (with check valve, slide clamp, and non-vented cap), and male luer with vented cap. 2.5 m (100”) / 4.1 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4166 CURLIN Infusion Administration Set
Order No: 340-4166
Administration set with non-vented bag spike, slide clamp, anti-siphon valve, and male luer with vented cap. 2.3 m (92”) / 3.7 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4165 CURLIN Infusion Administration Set
Order No: 340-4165
Epidural administration set with non-vented bag spike, yellow striped tubing, 0.2 micron air-eliminating filter, slide clamp, anti-siphon valve, and male luer with vented cap. 2.4 m (93”) / 4.1 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4144 CURLIN Infusion Administration Set
Order No: 340-4144
Epidural administration set with vented vial spike, yellow striped tubing, 0.2 micron air-eliminating filter, slide clamp, and male luer with vented cap. 2.3 m (91”) / 4.1 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4134 CURLIN Infusion Administration Set
Order No: 340-4134
Administration set with non-vented bag spike, slide clamp, y-site (with check valve, slide clamp, and non vented cap), and male luer with vented cap. 2.5 m (97”) / 3.9 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4133 CURLIN Infusion Administration Set
Order No: 340-4133
Administration set with non-vented bag spike slide clamp, Ultrasite® Needleless Injection Port, and male luer with vented cap. 2.5 m (98”) / 4.2 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4130V CURLIN Infusion Administration Set
Order No: 340-4130V
Administration set with non-vented bag spike, 0.2 micron aireliminating filter, slide clamp, male luer with vented cap, and add‐on check valve (V). 2.5 m (98”) / 6.8 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4130 CURLIN Infusion Administration Set
Order No: 340-4168
Administration set with non-vented bag spike, 0.2 micron air-eliminating filter, slide clamp, and male luer with vented cap. 2.5 m (98”) / 6.8 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4128V CURLIN Infusion Administration Set
Order No: 340-4128V
Administration set with non-vented bag spike, 1.2 micron air-eliminating filter, slide clamp, male luer with vented cap, and add-on check valve (V). 2.5 m (99”) / 7.1 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4128 CURLIN Infusion Administration Set
Order No: 340-4128
Administration set with non-vented bag spike, 1.2 micron air-eliminating filter, slide clamp, and male luer with vented cap. 2.5 m (99”) / 7.1 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4126 CURLIN Infusion Administration Set
Order No: 340-4126
Epidural administration set with non-vented bag spike, yellow striped tubing, 0.2 micron air-eliminating filter, slide clamp, and male luer with vented cap. 2.3 m (90”) / 3.7 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4115 CURLIN Infusion Administration Set
Order No: 340-4115
Administration set with female luer, slide clamp, and male luer with vented cap. 2.2 m (86”) / 3.4 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
340-4114 CURLIN Infusion Administration Set
Order No: 340-4114
Administration set with non-vented bag spike, slide clamp, and male luer with vented cap. 2.3 m (90”) / 3.4 mL
For use with the CURLIN 6000 and CURLIN PainSmart Infusion Pumps
